Superior heat dissipation
One-piece skived fin structure eliminates contact resistance, boosting thermal performance by 10%–30% over traditional folded fin designs

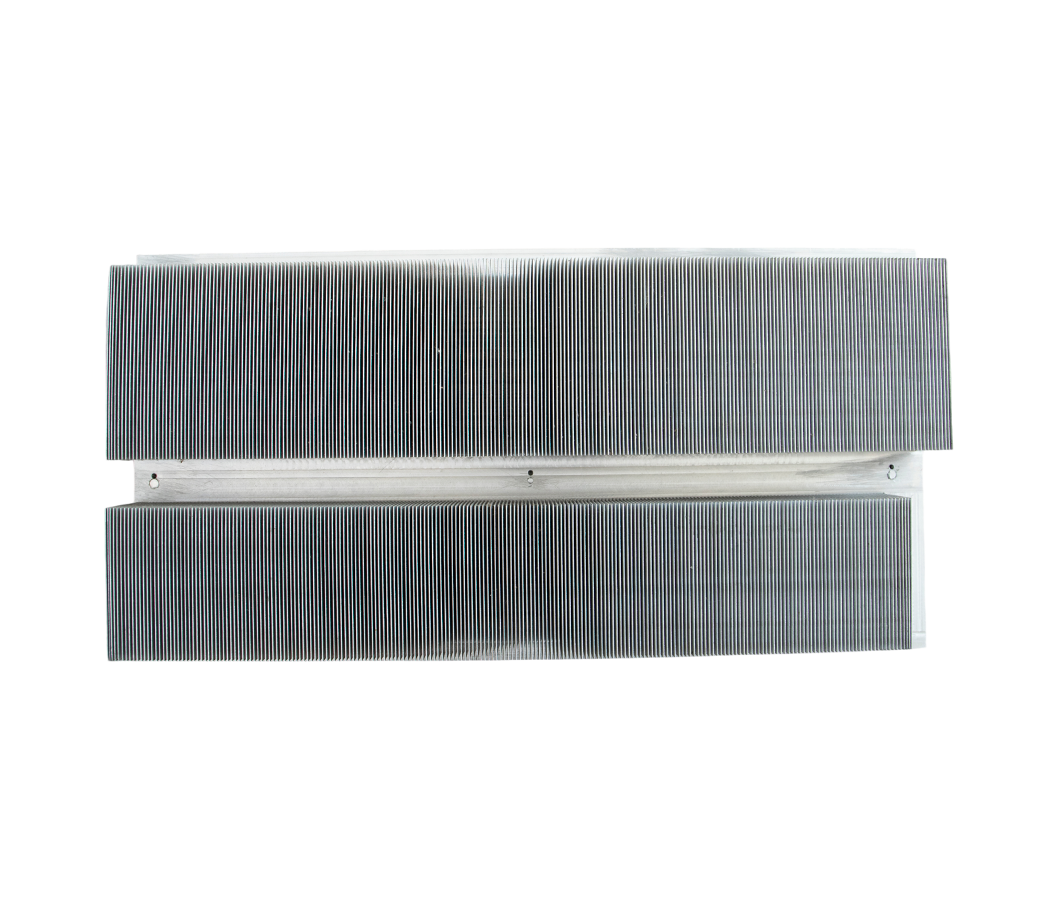

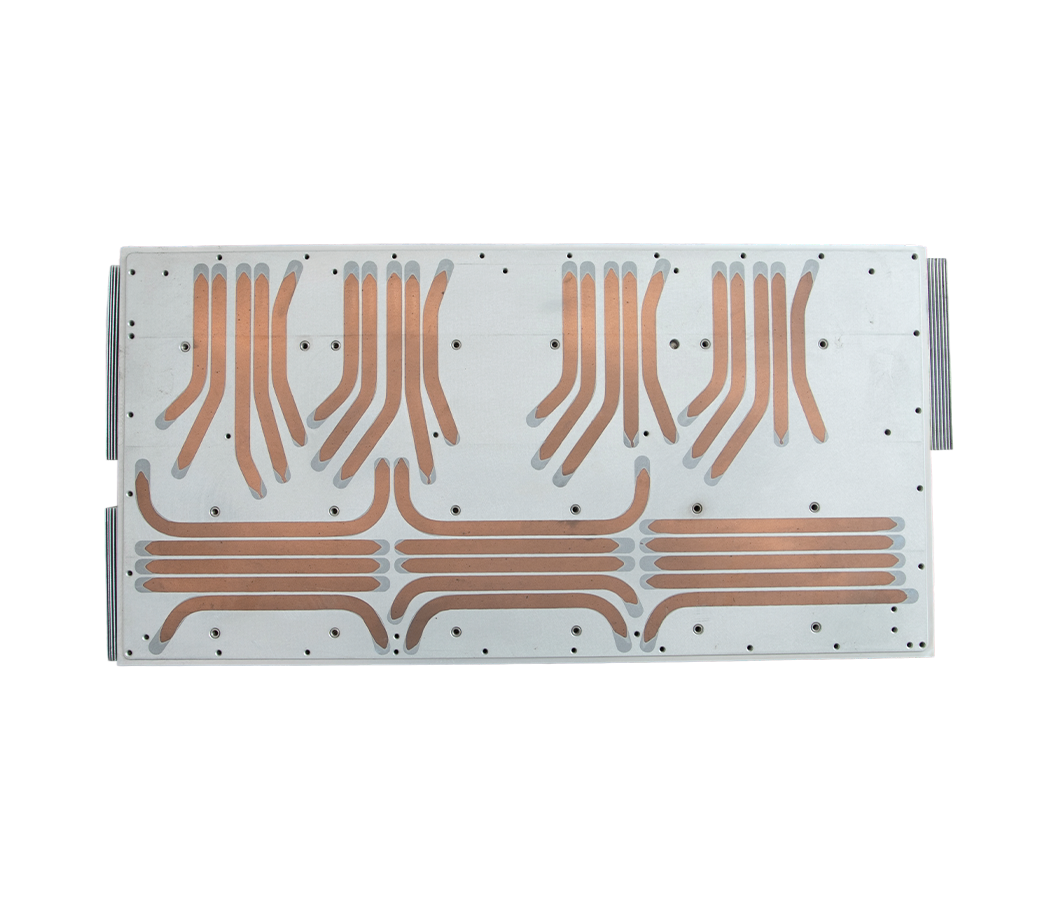

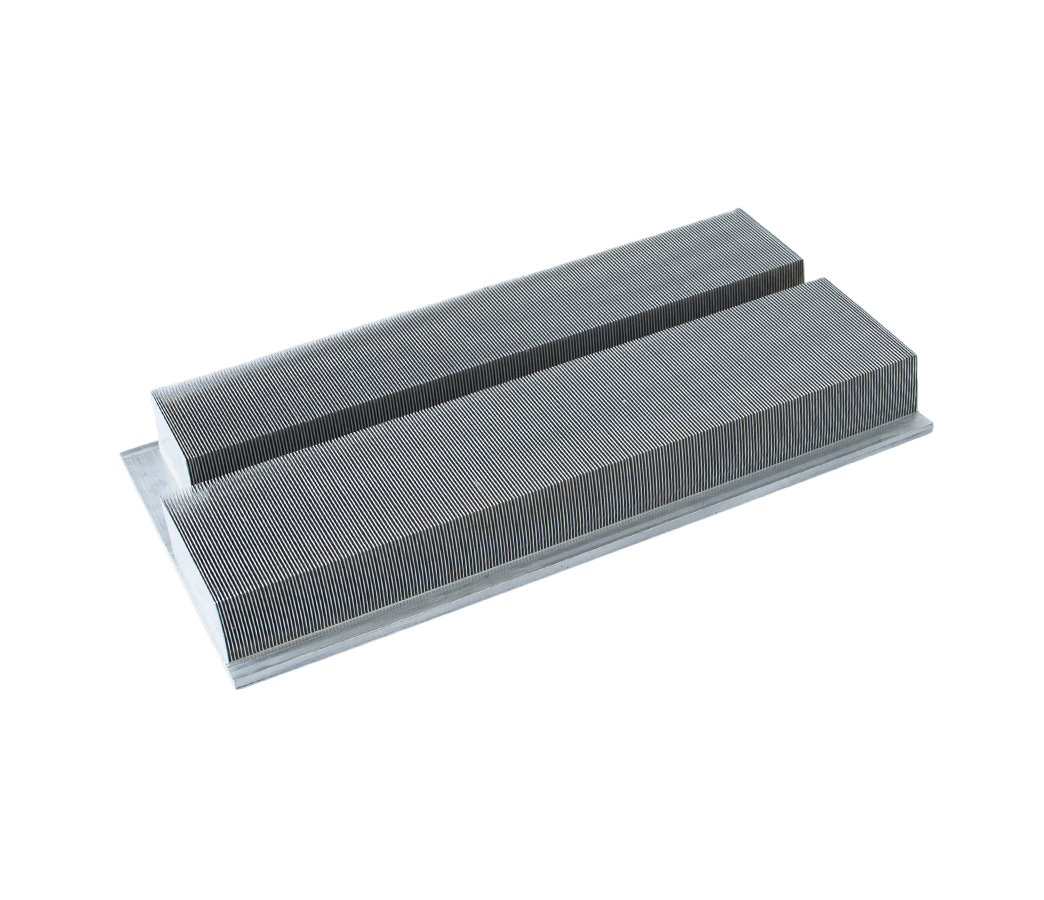

Skived Heat Pipe Heat Sink
1P18S/1P52S/1P104S
A high-efficiency thermal management solution manufactured using a unique skiving process, widely applied across various industries including electronics, automotive, and industrial sectors
Features
01
Customizable dimensions
Supports large-scale customization with fin width up to 500mm, height up to 100mm, and length up to 3 meters
02
Versatile configurations
Available in single-sided, double-sided, four-sided skiving, annular fins, and custom shapes to suit diverse cooling needs
03
Process flexibility
Enables secondary processing and integration with embedded tube or liquid cooling for enhanced thermal management
04
Cost-effective & fast turnaround
Tooling-free production allows rapid prototyping and customization via tool changes and programming—ideal for large-size, low-volume orders, reducing both costs and lead times
05
Specifications
| Operating Pressure | -- |
| Burst Pressure | -- |
| Leak Rate | -- |
| Thermal Resistance | -- |
| Surface Roughness | -- |
| 氦检测试 | -- |
| 氦检测试 | -- |
| 喷涂厚度 | -- |
| 涂层绝缘电阻 | -- |
| 漏电流 | -- |
| 电压 | -- |
| 爆破实验爆破压力 | -- |
| 零件压紧状态按整体平面度 | -- |
| 模组区域平面度 | -- |
| 散热效率 | -- |
| 温差控制 | -- |
| 流道压降 | -- |
| 密封与可靠性 | -- |
| 轻量化 | -- |
| Base Plate Material | AL1060 Aluminum |
| Copper Tube Material | CU1020 Copper |
| Skived Fin & Heat Pipe Bonding | Epoxy adhesive |
| Heat Pipe Operating Temperature Range | -40°C to 110°C |
| Epoxy Adhesive Operating Temperature Range | -40°C to 150°C |
| Total Heat Sink Power | 3600W |
| Temperature Difference Between Two Heat Pipes in Same Module | <5°C |
| Rapid Temperature Cycling Reliability Test | -40°C to 110°C, 600 cycles; performance ∆T within 5°C |
| High Temperature Test | 115°C, 200 hours; performance ∆T within 5°C |
| Humidity Test | 85°C / 85% RH, 7 days; performance ∆T within 5°C |
