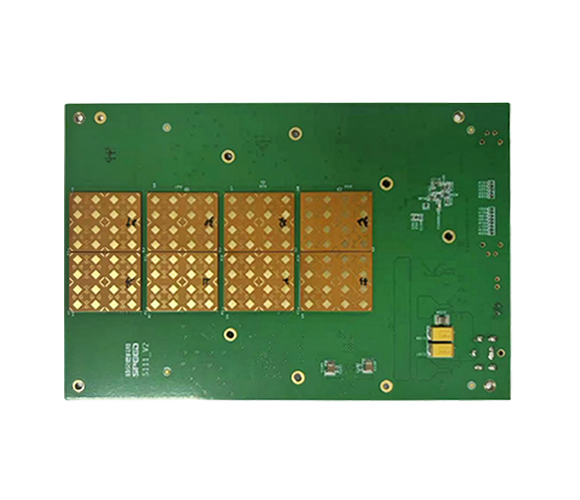

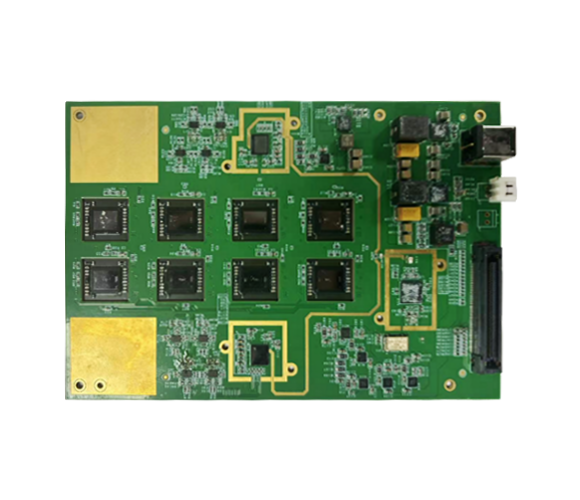

The module is composed of 8 4X4 AiPs, forming an 8x16 antenna array for phased array scanning. It enables horizontal scanning of ±60° and vertical scanning of ±20°
Wide-Angle Scanning, Flexible Integration
The module operates on 12V power supply. Both the input and output signals are IQ signals. An external FPGA is used for beam control. It is highly portable and can be widely applied in communication base stations and CPE devices
01
| Type | -- |
| Function | -- |
| IP Rating | -- |
| Dimension(mm) | -- |
| Product Certification | -- |
| Working Voltage | -- |
| Operating Temperature | -- |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | -- |
| Working Bandwidth | -- |
| Working Protocols | -- |
| Operation Mode | -- |
| Security Encryption Protocol | -- |
| Frequency Range | 24.25-27.5GHz |
| Channel BW | 4*100MHz, 8*100MHz |
| Direction of Polarization | ±45° |
| Antenna Scale | 8X16 |
| Horizontal Scanning | ±60° |
| Vertical Scanning | ±20° |
| Total Power Consumption | 50W |
