Four-system dual-band antenna
Supports L1 + L2 dual frequency bands, compatible with global systems such as GPS and BDS, as well as regional enhancement systems like SBAS and IRNSS, achieving high-precision positioning across multiple systems

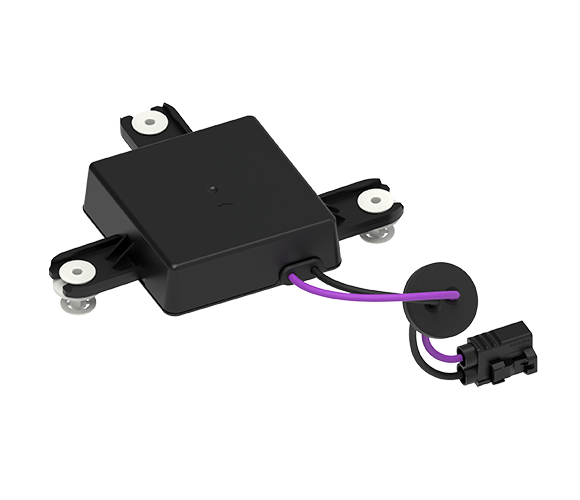

High-precision Dual-frequency Positioning Antenna
HD GNSS L1+L2
An integrated built-in antenna specifically designed for automobiles, supporting dual-frequency high-precision positioning of GNSS (L1 + L2)
Features
01
Centimeter-level positioning accuracy
Equipped with RTK technology, the phase center accuracy reaches sub-centimeter level, maintaining high stability and repeatability
02
Strong anti-interference design
Can suppress unwanted signals and reduce the risk of system lockout
03
Robust protective structure
Core components are fully sealed, with a protection level of IP67, effectively dustproof and waterproof
04
Outstanding satellite acquisition performance
Excellent gain in each frequency band, with an axial ratio of <3dB across the entire frequency band, maintaining high stability in signal reception and output
05
Specifications
| Type | Internal antenna |
| Function | GNSS |
| IP Rating | IP52 |
| Dimension(mm) | 71*74*21.7 |
| Product Certification | -- |
| Working Voltage | -- |
| Operating Temperature | -- |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | -- |
| Working Bandwidth | -- |
| Working Protocols | -- |
| Operation Mode | -- |
| Security Encryption Protocol | -- |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
