Ultra-compact module design

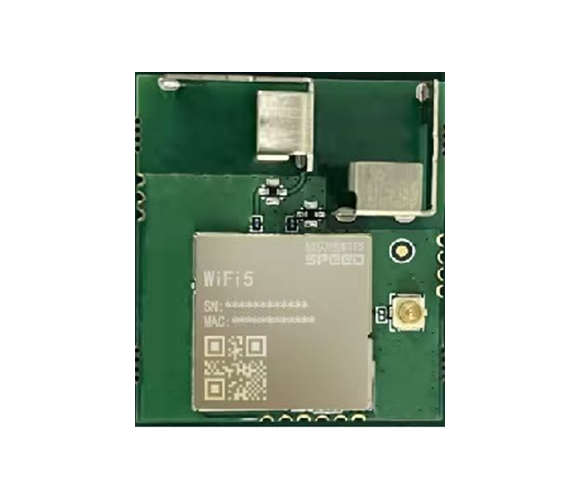

Wi-Fi5 Module
Wi-Fi5-02
This module features an ultra compact size, with highly integrated 2T2R RF module, USB 2.0 interface, and IEEE 802.11a/b/g/n/ac functionality
Features
01
Supports a DC 3.3V power supply design
02
Use LCC module packaging
03
Supports a combined design of onboard and external antennas
04
Specifications
| Type | -- |
| Function | -- |
| IP Rating | -- |
| Dimension(mm) | -- |
| Product Certification | FCC、IC |
| Working Voltage | DC3.3V/1.5A |
| Operating Temperature | -10 to 70°C |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | 2.4 GHz + 5 GHz |
| Working Bandwidth | 2.4 GHz to 20/40 MHz, 5 GHz to 20/40/80 MHz |
| Working Protocols | IEEE802.11a/b/g/n/ac |
| Operation Mode | STA/AP/P2P |
| Security Encryption Protocol | WFA WPA/WPA2/WPA3 personal, WPS2.0 |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
