Supports compatible designs with external 2-antenna and 3-antenna configurations

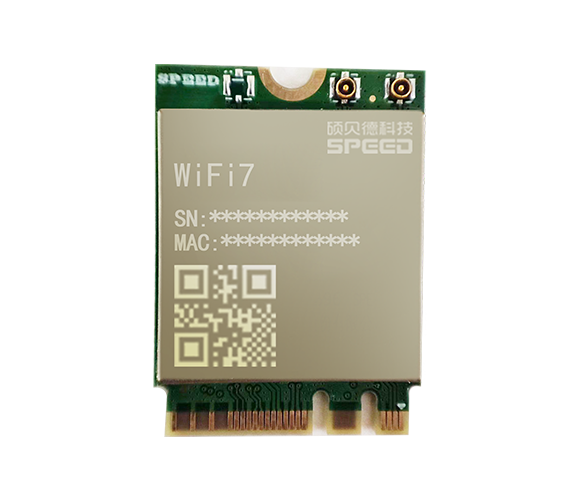

M.2 Wi-Fi7 Module
Wi-Fi7-01
This module integrates a 2T2R RF module, PCIe, USB 2.0 interfaces, and IEEE 802.11a/b/g/n/ac/ax/be capabilities, making it suitable for applications requiring ultra-high throughput performance
Features
01
Supports the M.2 standard with KeyA+E interfaces
02
Supports DC 3.3V power supply
03
Supports three frequency bands: 2.4G,5G, and 6G
04
Product dimensions: 22*30 mm
05
Specifications
| Type | -- |
| Function | -- |
| IP Rating | -- |
| Dimension(mm) | -- |
| Product Certification | -- |
| Working Voltage | DC 3.3V/2A |
| Operating Temperature | -- |
| Antenna Type | -- |
| Operating Frequency | -10 to 70°C |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | 2.4 GHz + 5 GHz + 6 GHz |
| Working Bandwidth | 2.4 GHz to 20/40 MHz, 5 GHz to 20/40/80/160 MHz, 6 GHz to 20/40/80/160 MHz |
| Working Protocols | IEEE802.11a/b/g/n/ac/ax/be |
| Operation Mode | STA/AP/P2P |
| Security Encryption Protocol | WEP/WPA/WPA2/WPA3‐SAE Personal, MFP |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
