Ultra-compact module design

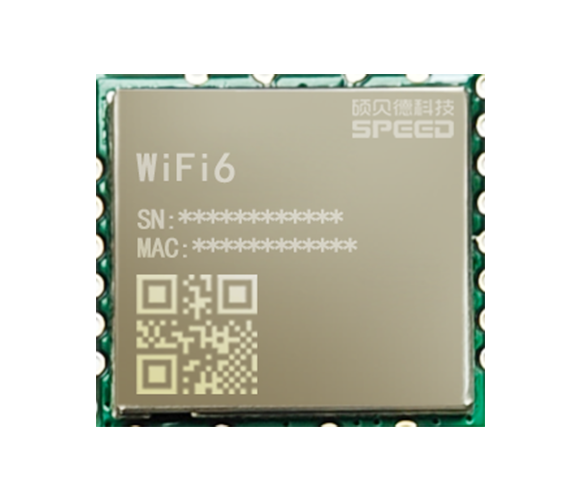

Wi-Fi6 Module
Wi-Fi6-03
This module features an ultra compact size and highly integrated 1T1R RF module, along with PCM, USB 2.0, UART interfaces, and IEEE 802.11a/b/g/n/ac/ax support
Features
01
Supports a DC 3.3V power supply design
02
Use LCC module packaging
03
Supports external antenna design
04
Product dimensions: 12*13 mm
05
Specifications
| Type | -- |
| Function | -- |
| IP Rating | -- |
| Dimension(mm) | -- |
| Product Certification | SRRC |
| Working Voltage | DC 3.3V/1A |
| Operating Temperature | -10 to 70°C |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | 2.4 GHz + 5 GHz |
| Working Bandwidth | 2.4 GHz to 20/40 MHz, 5 GHz to 20/40/80 MHz |
| Working Protocols | IEEE802.11a/b/g/n/ac/ax |
| Operation Mode | STA/AP/P2P |
| Security Encryption Protocol | WEP/WPA/WPA2/WPA3‐SAE Personal, MFP |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
