Design of an integrated, high-performance onboard antenna

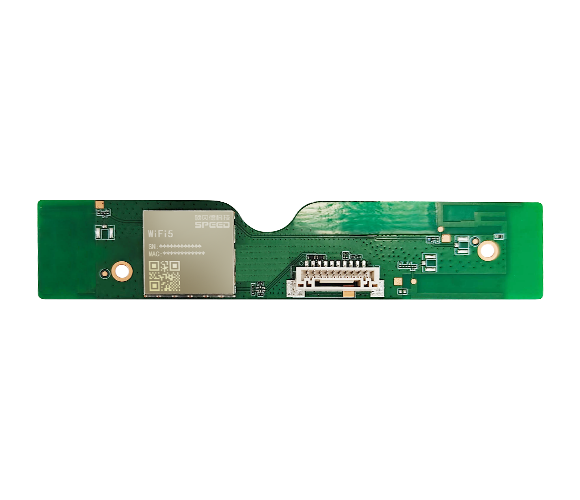

Integrated Wi-Fi5 Module
Wi-Fi5-01
This module integrates a 2T2R RF module and a USB 2.0 interface, supports IEEE 802.11a/b/g/n/ac protocols, and is applicable to scenarios requiring high-throughput performance
Features
01
Supports DC 5V and DC 3.3V power supply compatibility design
02
Supports compatible designs for FPC connectors and wire harness connectors
03
Supports compatible designs for optional external antennas and onboard antennas
04
Specifications
| Type | -- |
| Function | -- |
| IP Rating | -- |
| Dimension(mm) | -- |
| Product Certification | SRRC, CE, Telec |
| Working Voltage | DC 5V/1A or DC3.3V/1.5A |
| Operating Temperature | -10 to 70°C |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | 2.4 GHz + 5 GHz |
| Working Bandwidth | 2.4 GHz to 20/40 MHz, 5 GHz to 20/40/80 MHz |
| Working Protocols | IEEE802.11a/b/g/n/ac |
| Operation Mode | STA/AP/P2P |
| Security Encryption Protocol | WPA/WPA2 |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
