Durable design suitable for all models
Adopting a sturdy and integrated structure, it is compatible with multi-band combination antennas and can stably cope with complex conditions such as vibration and temperature differences

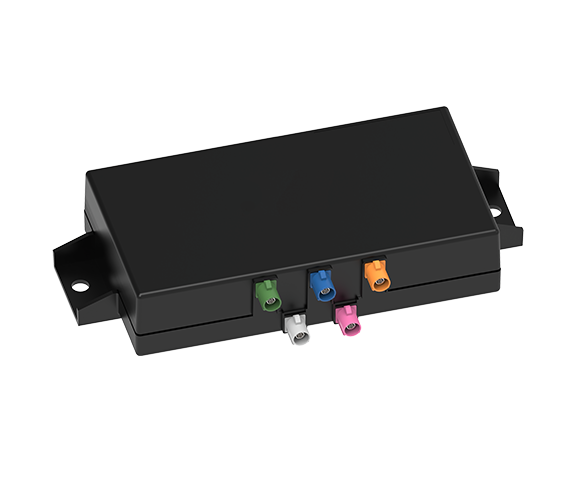

Built-in Antenna
5G*4+GPS(L1+L5) Antenna
An integrated built-in antenna specifically designed for automobiles, combining 5G MIMO technology and GNSS L1 L5 dual-frequency positioning technology
Features
01
Dual coverage across all networks and all positioning
Supports 2G/3G/4G/5G networks, covers GNSS L1 + L5 dual bands, ensuring the stability of both communication and positioning
02
Performance optimization of independent ports
Equipped with 5 independent functional ports, they are precisely divided into 2x2 cellular MIMO ports and GNSS ports, improving the efficiency of communication and positioning
03
Platform-based vehicle assembly design
Adopting a single-hole installation scheme and combined with a straight-through wiring layout, it significantly simplifies the vehicle assembly process and saves costs
04
Specifications
| Type | Internal antenna |
| Function | 5G, GPS/BD |
| IP Rating | IP52 |
| Dimension(mm) | 150.8*80.8*32.6 |
| Product Certification | -- |
| Working Voltage | -- |
| Operating Temperature | -- |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | -- |
| Working Bandwidth | -- |
| Working Protocols | -- |
| Operation Mode | -- |
| Security Encryption Protocol | -- |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
