Automotive-grade safety
Optional ASIL B rating, equipped with full-temperature calibrated IMU, complying with automotive functional safety standards.

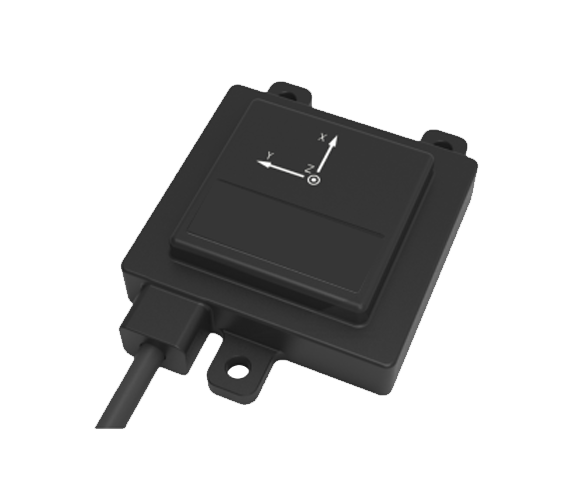

GNSS Antenna Integration Module
RTK GNSS
Automotive-grade high-precision GNSS integrated module, integrating P-BOX and intelligent antenna, with built-in GNSS antenna, full-temperature calibrated IMU and automotive-grade main control
Features
01
High-precision integration
Supports RTK positioning and tight integration algorithm, fuses GNSS+IMU for reliable and continuous positioning
02
Automotive architecture adaptation
Complies with AUTOSAR, supports CAN/automotive Ethernet, compatible with gPTP time synchronization
03
Integrated miniaturization
Integrates multiple components, size 80mm×75mm×24.3mm, saving installation space
04
Multi-interface collaboration
Supports various automotive interfaces, can work with lidar and other sensors
05
Automotive-grade power consumption
9-16V wide voltage supply, operating current ≤100mA, sleep current ≤0.1mA
06
Multi-scenario adaptation
Covers high-precision positioning scenarios such as autonomous driving, surveying, agriculture, and UAVs
07
Specifications
| Type | External antenna, active module |
| Function | RTK, GNSS |
| IP Rating | IP67 |
| Dimension(mm) | 80×75×24.3 |
| Product Certification | -- |
| Working Voltage | -- |
| Operating Temperature | -- |
| Antenna Type | -- |
| Operating Frequency | -- |
| Ports Type | -- |
| Polarization | -- |
| Side Lobe Level | -- |
| Feeding Type | -- |
| Size(L*W*H) | -- |
| Weight | -- |
| Working Temperature | -- |
| Working Frequency Bands | -- |
| Working Bandwidth | -- |
| Working Protocols | -- |
| Operation Mode | -- |
| Security Encryption Protocol | -- |
| Frequency Range | -- |
| Channel BW | -- |
| Direction of Polarization | -- |
| Antenna Scale | -- |
| Horizontal Scanning | -- |
| Vertical Scanning | -- |
| Total Power Consumption | -- |
